一、前言这篇文章讲解： 采用华为云最新推出的Flexus云服务器X实例搭建RTSP服务器，完成视频直播需求随着实时视频流传输需求的增长，RTSP（实时流协议）服务器成为了许多视频监控、直播和多媒体应用的核心组件。

在当今高度互联的世界中，能够快速部署且稳定运行的RTSP服务器对于确保高质量的视频流体验至关重要本文将指导如何在华为云Flexus X实例上部署一款轻量级的RTSP服务器——（采用simple-rtsp-server）。

通过本教程，将详细介绍如何在华为云Flexus X实例上安装和配置simple-rtsp-serversimple-rtsp-server以其简单易用的特点而闻名，非常适合那些希望快速搭建起基本RTSP服务的开发者。

将涵盖从环境准备到软件安装，再到基本配置的所有步骤，帮助顺利搭建一个可靠的RTSP服务器，为视频流应用提供坚实的基础华为云Flexus云服务器X实例是由国家科技进步奖获得者、华为公司Fellow及华为云首席架构师顾炯炯牵头研发的一款创新性云服务器。

该实例基于华为的擎天QingTian架构、瑶光云脑和盘古大模型等核心技术，是业界首款应用驱动的柔性算力云服务器，适用于高科技、零售、金融、游戏等多个行业的通用工作负载场景，如网络应用、数据库、虚拟桌面、分析索引、微服务及持续集成/持续部署（CI/CD）等。

传统的云服务器通常只提供固定的CPU和内存规格，无法精准匹配用户的实际资源需求，导致资源利用效率低下相比之下，华为云Flexus X实例提供了更为灵活的算力配置，支持超过100种不同的CPU与内存配比，最高可达到3:1的比例，从而更好地适应各种业务应用的需求。

Flexus X实例不仅在性能方面表现出色，还内置了智能应用调优算法，结合华为技术专家多年积累的经验，在基础模式下，其GeekBench单核及多核跑分可达业界同规格独享型实例的1.6倍在性能模式下，Flexus X实例的性能超过了同类C系/G系/R系及S系旗舰型云主机的标准。

此外，Flexus X实例还配备了X-Turbo加速技术和大模型底层智能调度技术，为关键业务应用提供加速功能例如，在Flexus X实例上部署的MySQL、Redis和Nginx等应用，其性能最高可达业界同规格独享型实例的6倍（MySQL性能），长期运行时也能保持2倍的性能优势。

Flexus X实例在定价策略上定位于经济型级别，但其性能表现却超越了旗舰级云主机通过动态业务画像规格优化等技术，用户在将业务从本地服务器或其他云服务提供商迁移到Flexus X实例时，可以节省高达30%的算力成本，从而实现业务的全面提速和效能提升，享受到云基础设施的显著改进体验。

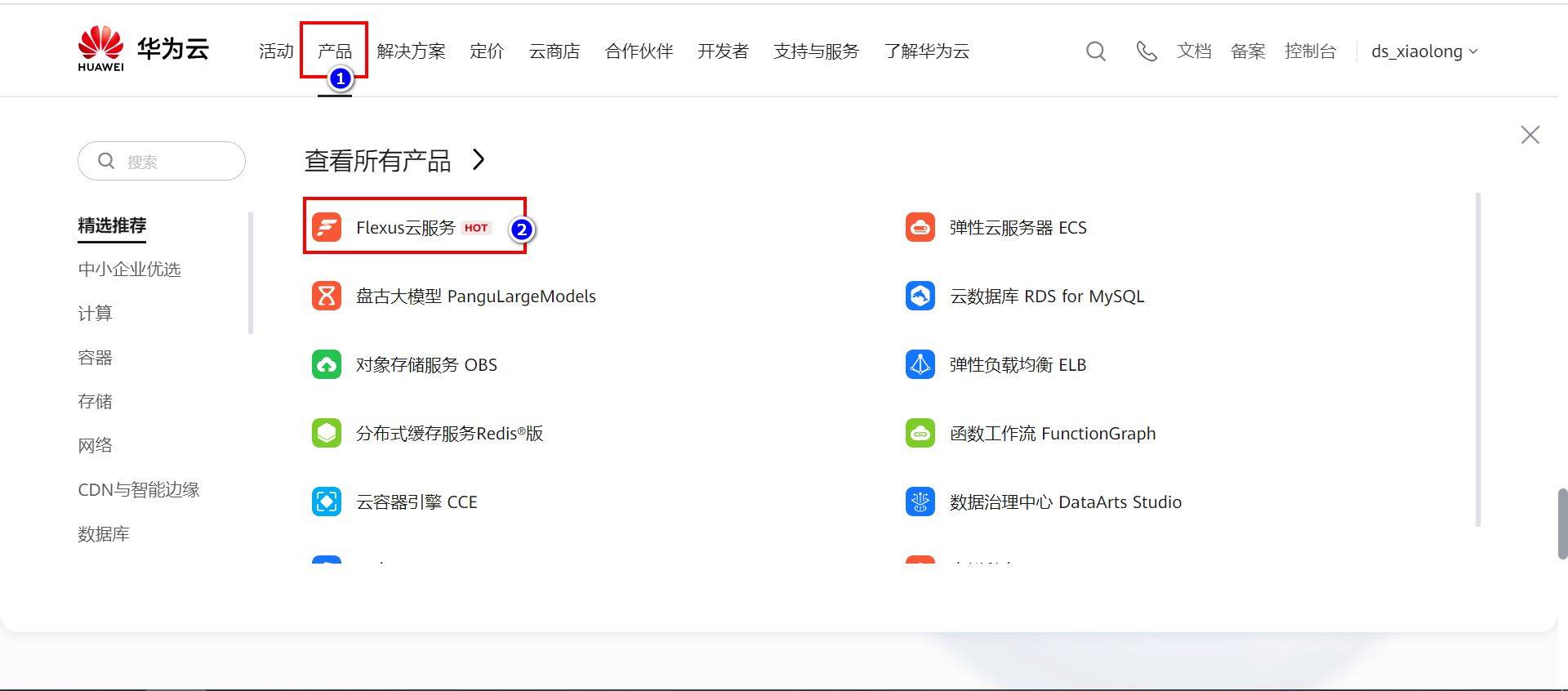

二、服务器选购2.1 登录官网链接：https://www.huaweicloud.com/

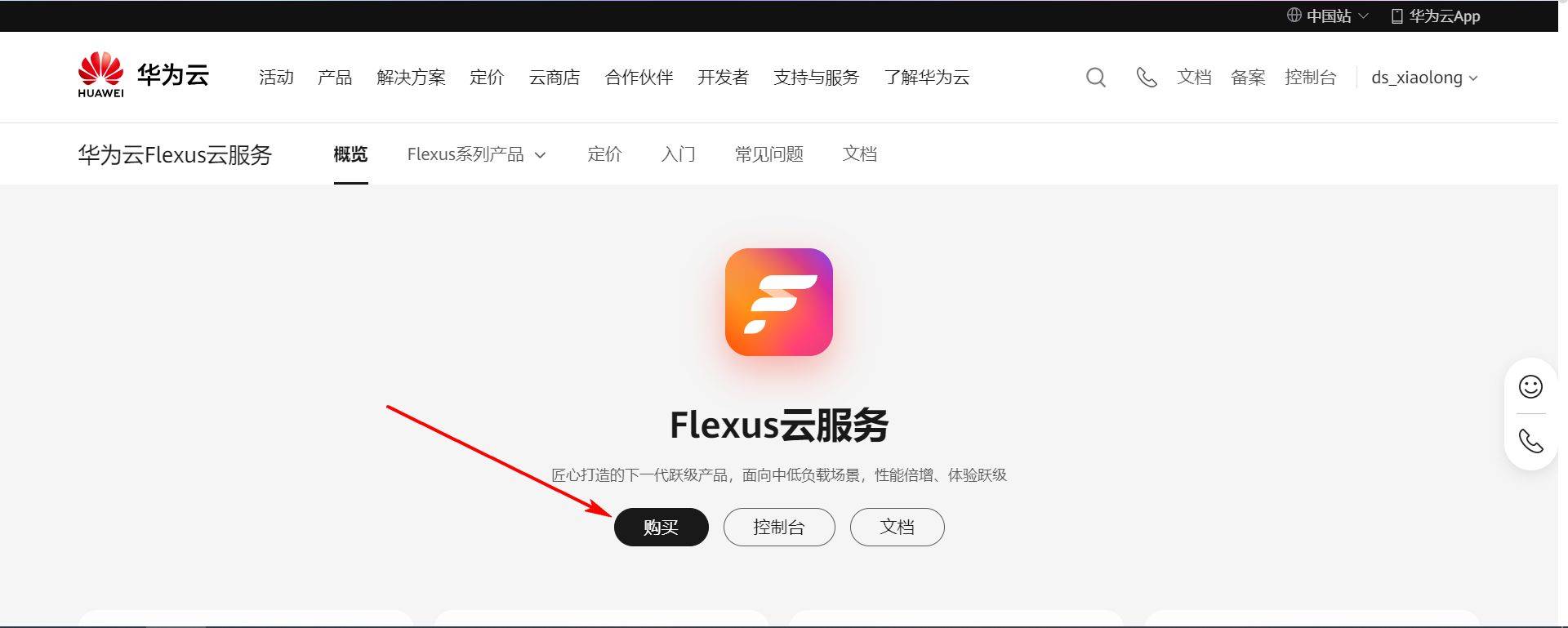

在官网首页的轮播图里可以看到，有Flexus云服务器的宣传这是华为云匠心打造的下一代跃级产品，面向中低负载场景，性能倍增、体验跃级的服务器2.2 选购服务器在产品页面，也可以看到Flexus云服务的选项，点击进去选购服务器。

链接：https://www.huaweicloud.com/product/flexus.html

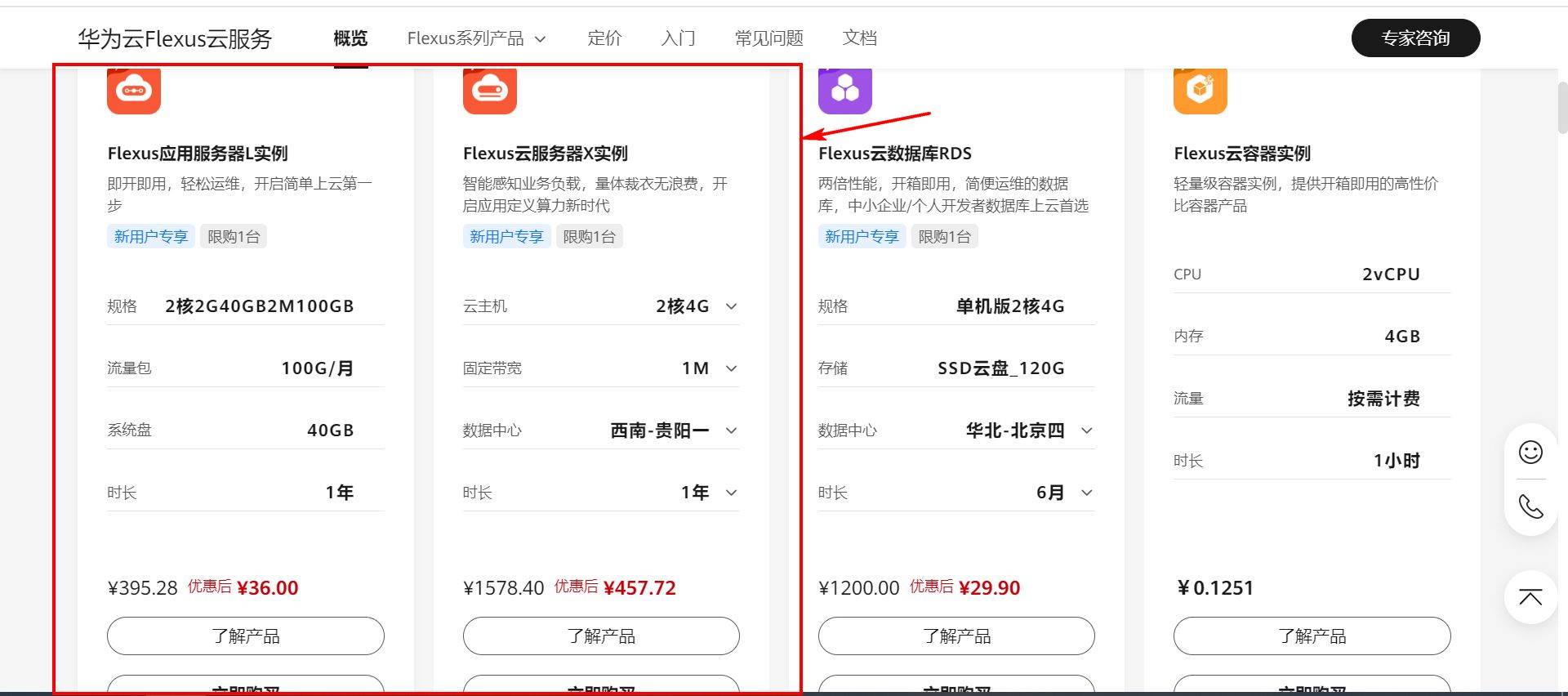

在选购页面可以看到服务器推广器件，1年36块钱。 每个月的流量是100G，对于一些访问量不高的服务器或者测试用是非常合适的。

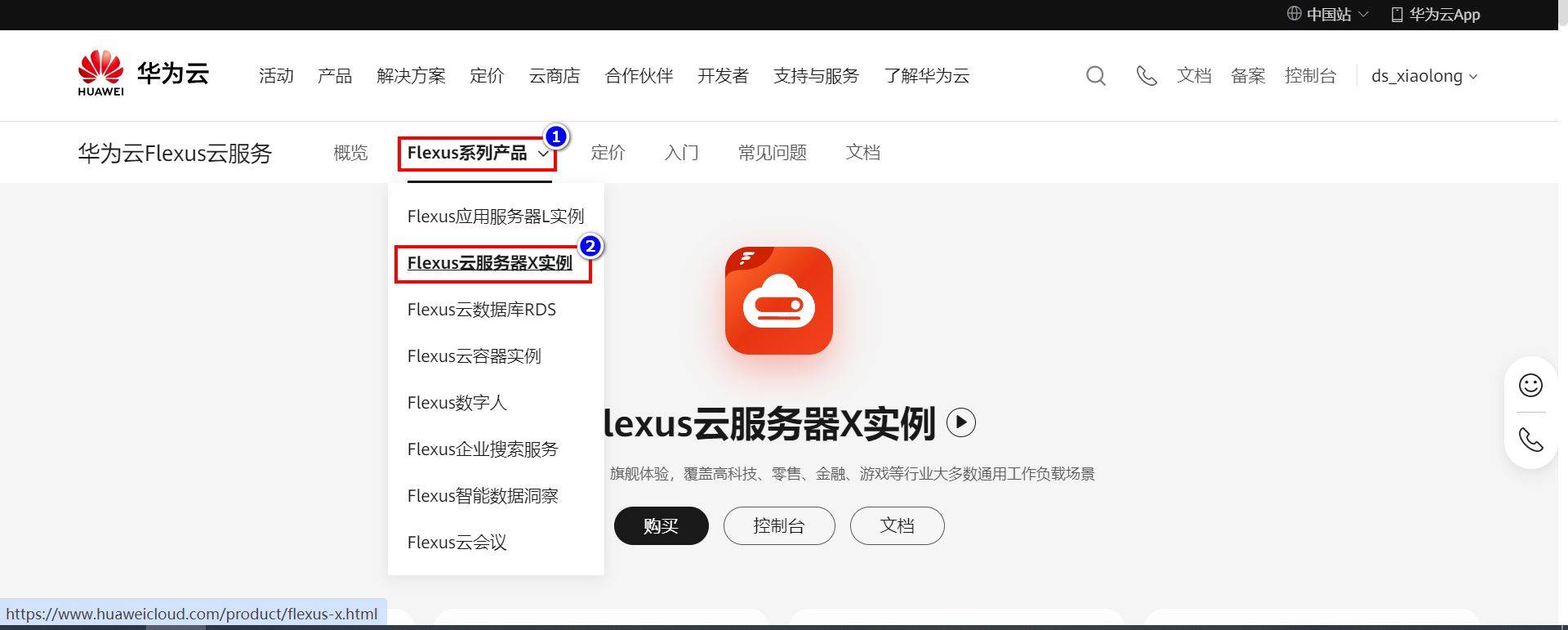

当前我要选择的服务器是：Flexus云服务器X实例 ，点击Flexus系列产品，选择X实例Flexus云服务器X实例符合：柔性算力，六倍性能，旗舰体验，覆盖高科技、零售、金融、游戏等行业大多数通用工作负载场景。

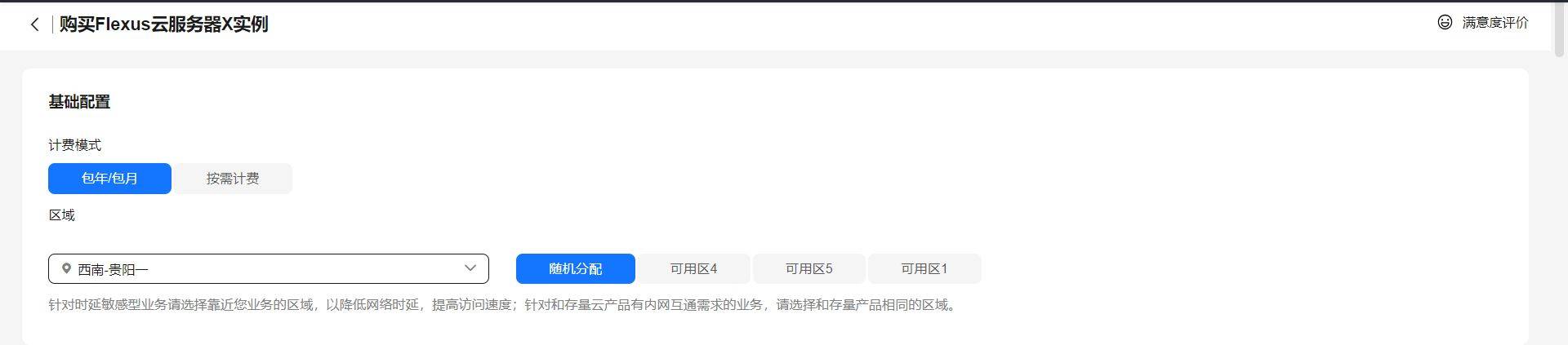

2.3 选择服务器区域针对时延敏感型业务请选择靠近您业务的区域，以降低网络时延，提高访问速度；针对和存量云产品有内网互通需求的业务，请选择和存量产品相同的区域。

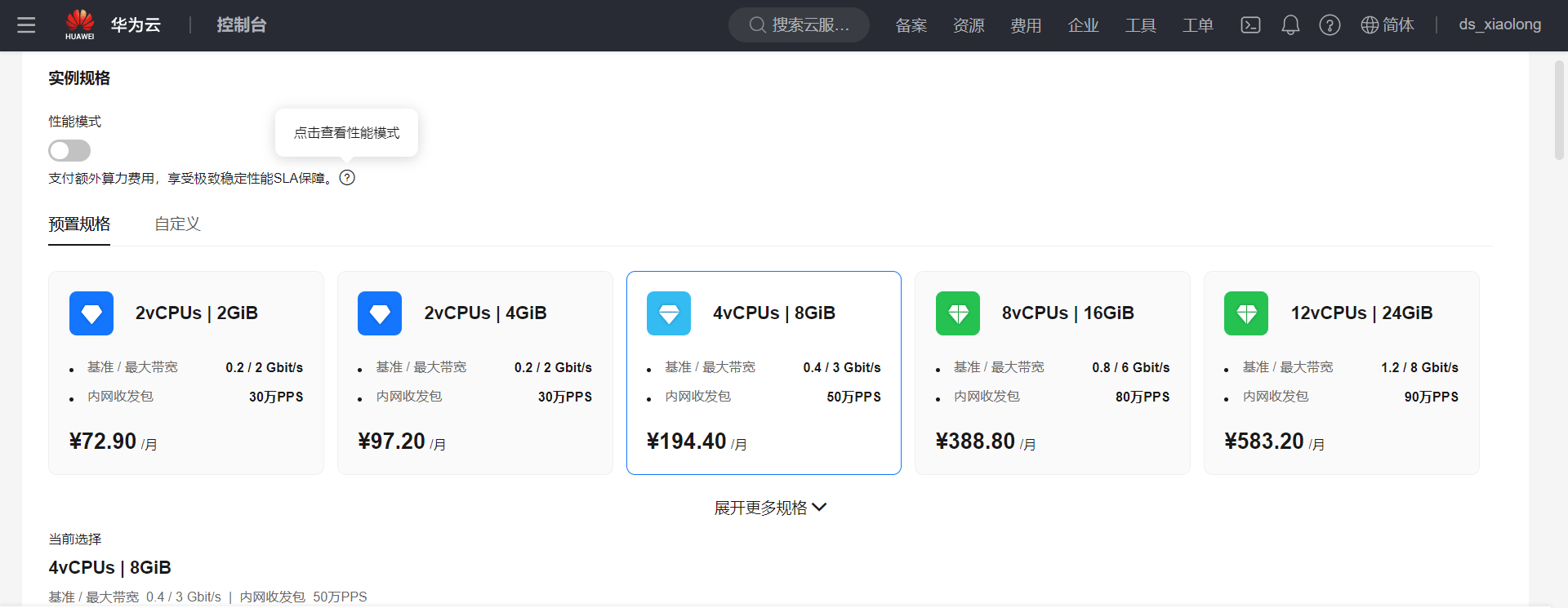

2.4 选择服务器规格

2.5 选择系统镜像我这选择ubuntu系统，用来搭建服务器。这个根据自己的情况选择，自己适合那一种就选择哪一种。

2.6 选择存储盘我选择150G大小。

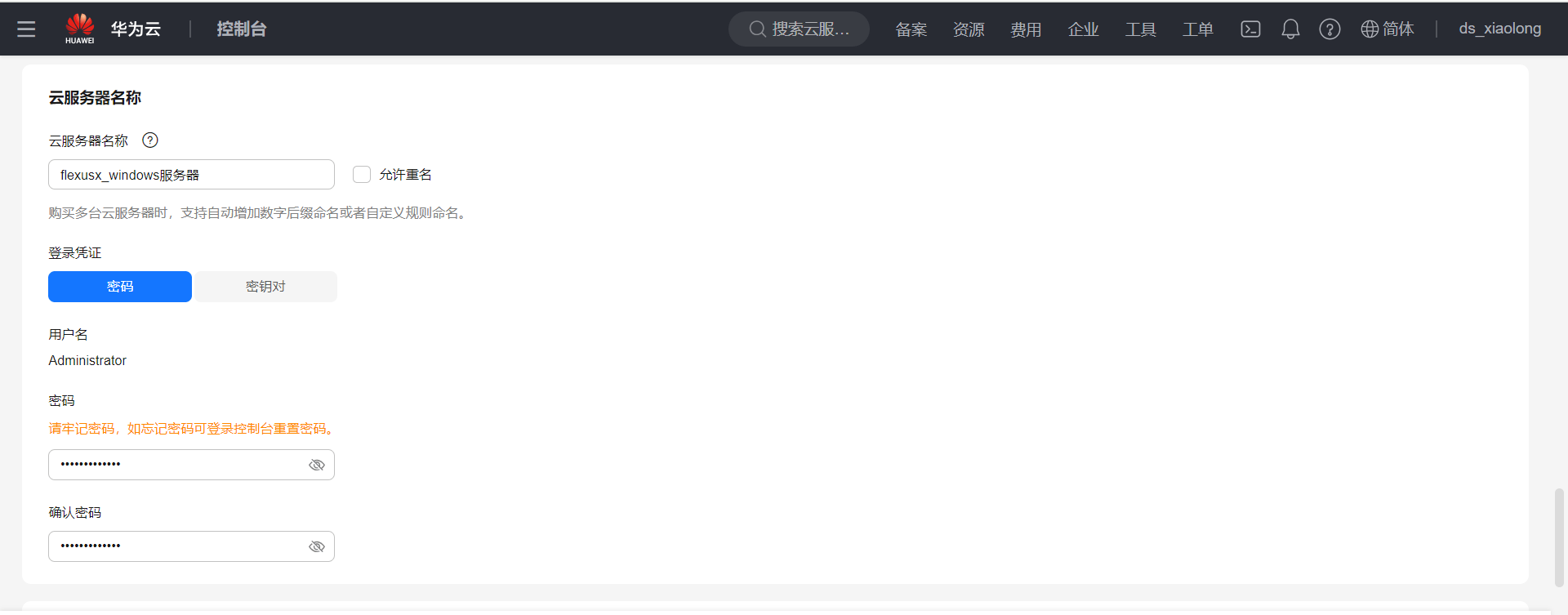

2.7 配置密码设置好服务器的名字（如果你有多个服务器，为了自己好区别）和系统的登录密码。

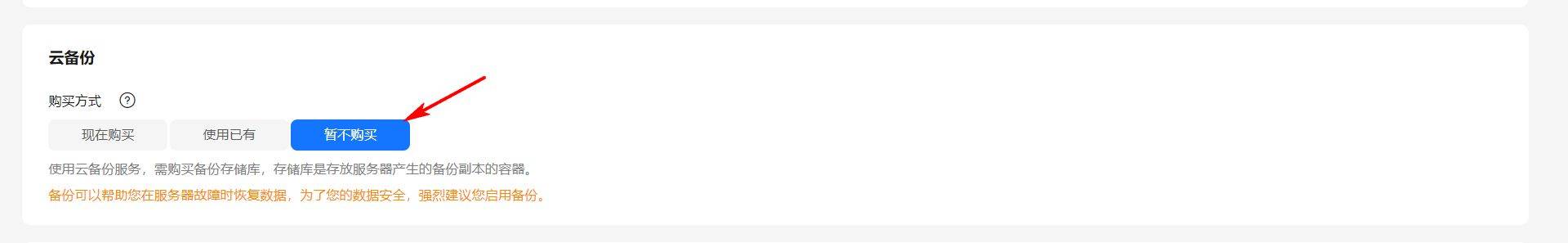

2.8 配置云备份云备份这个不买。有需要自己可以购买。

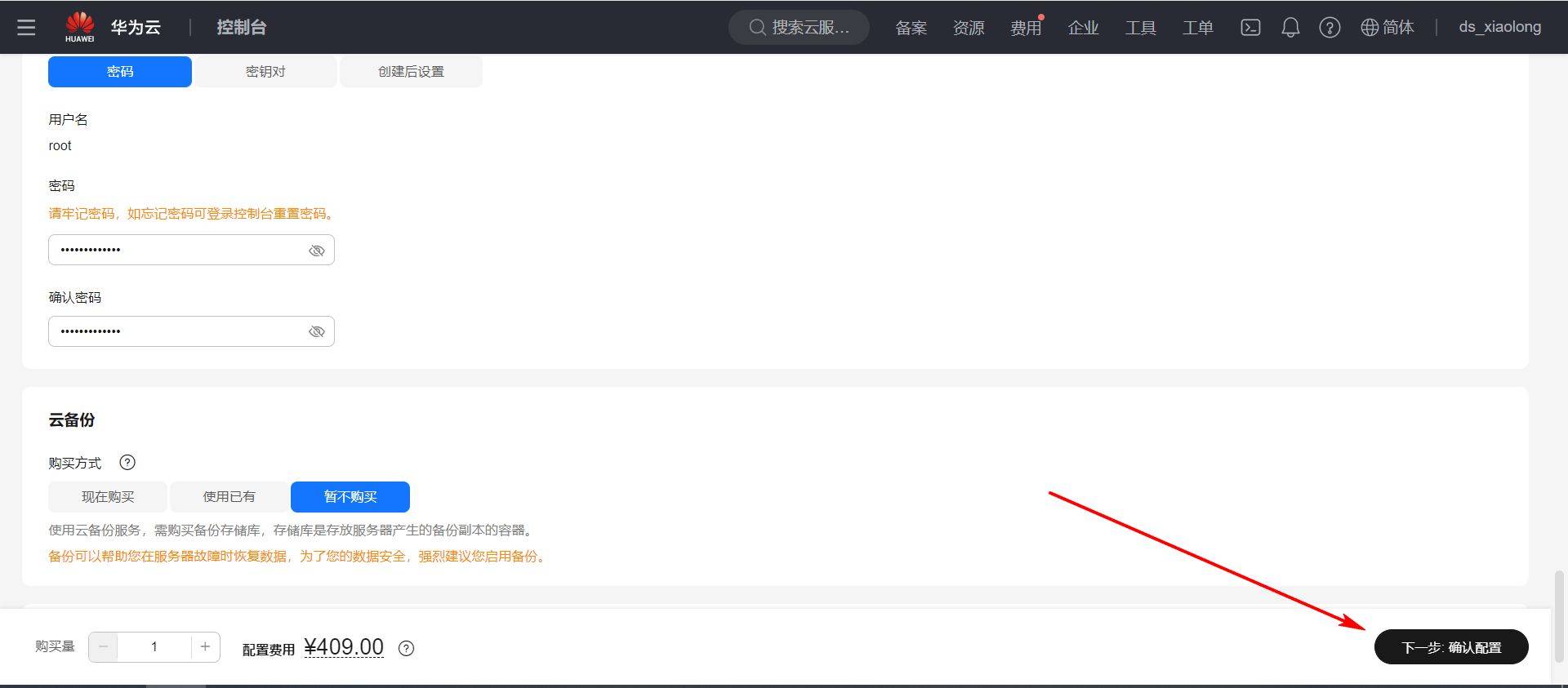

2.9 确认配置

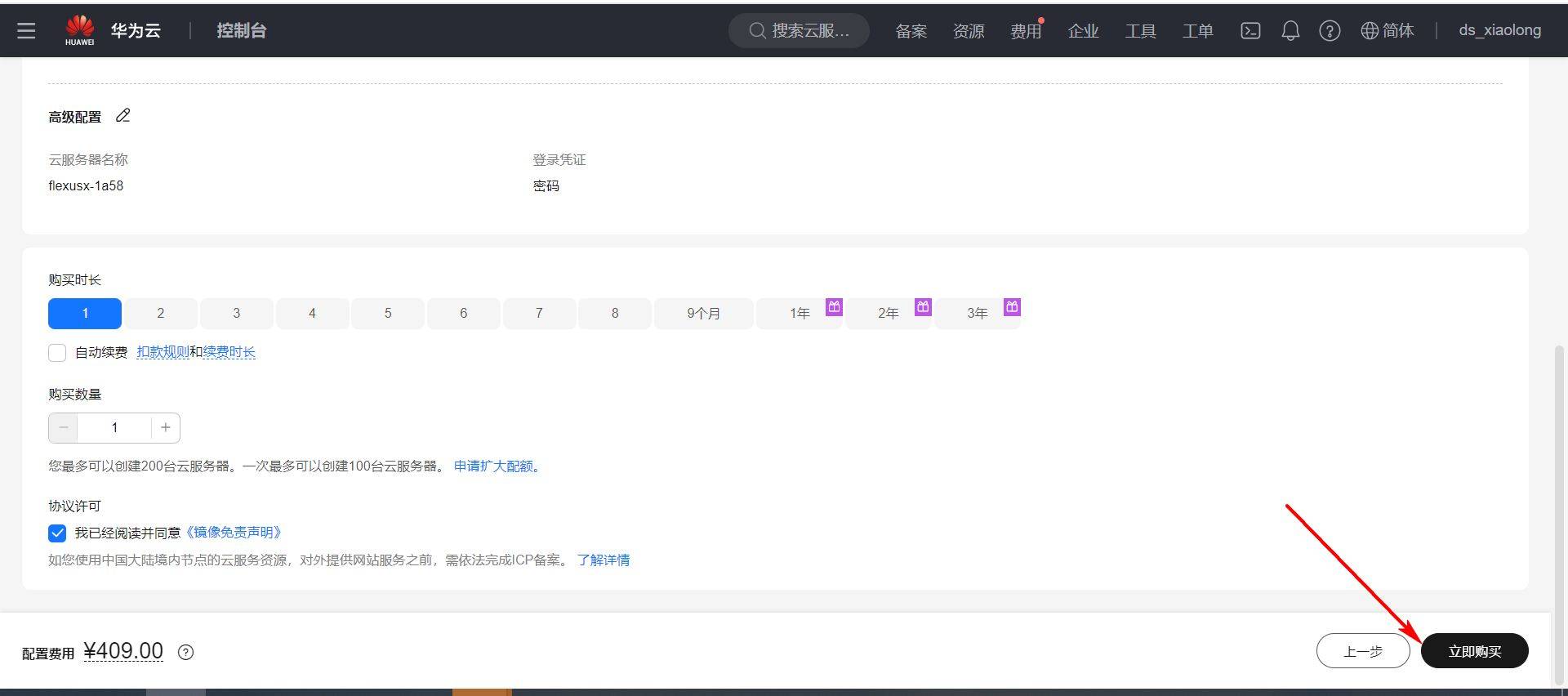

2.10 立即购买

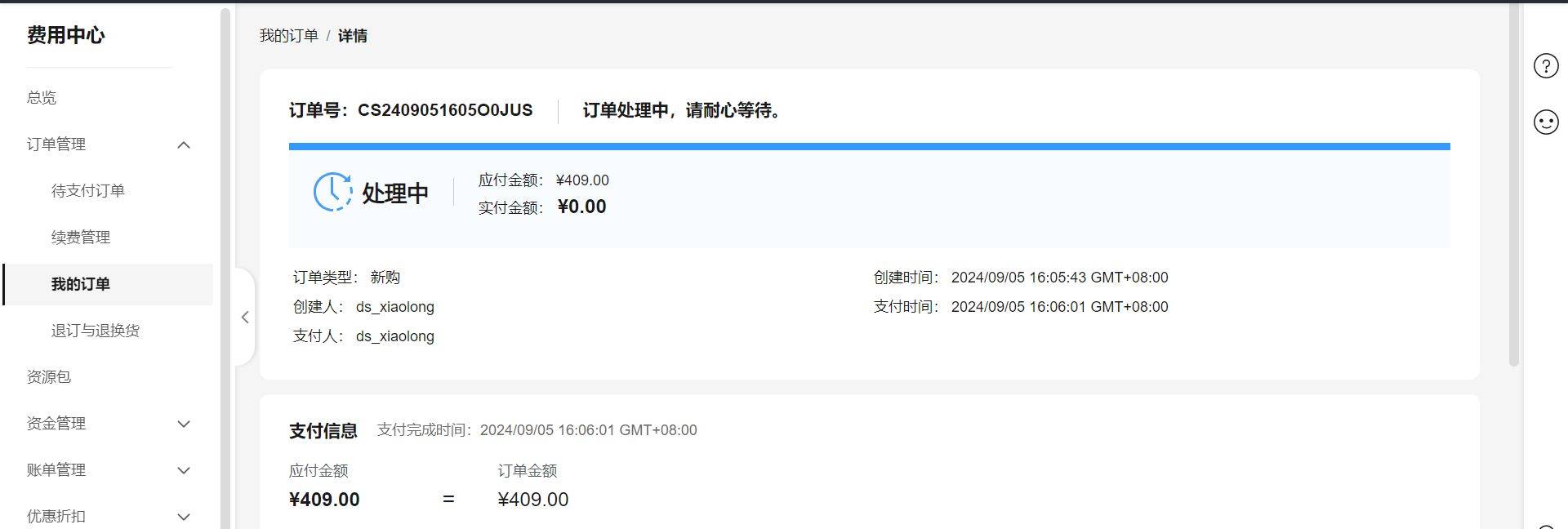

购买成功。

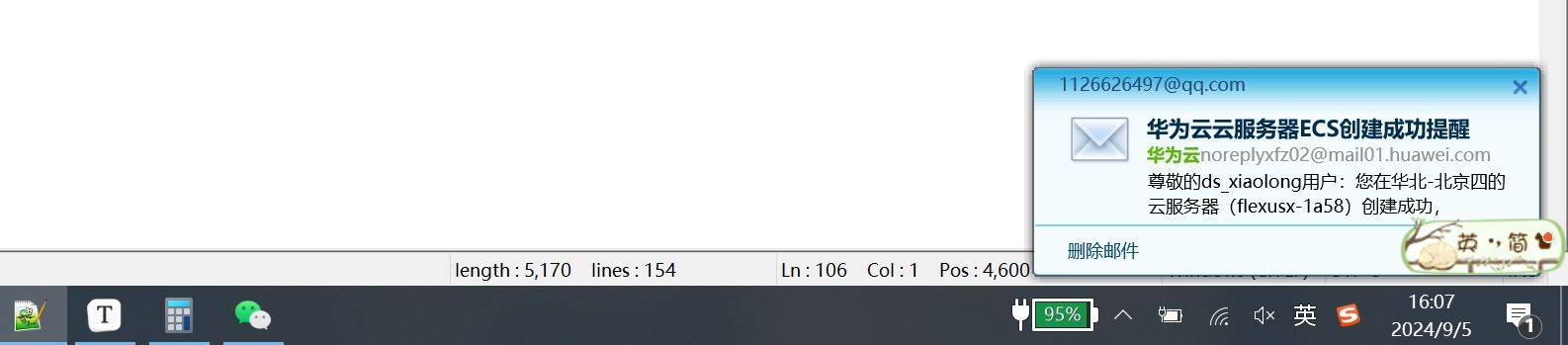

创建成功之后，邮箱会收到提示的。

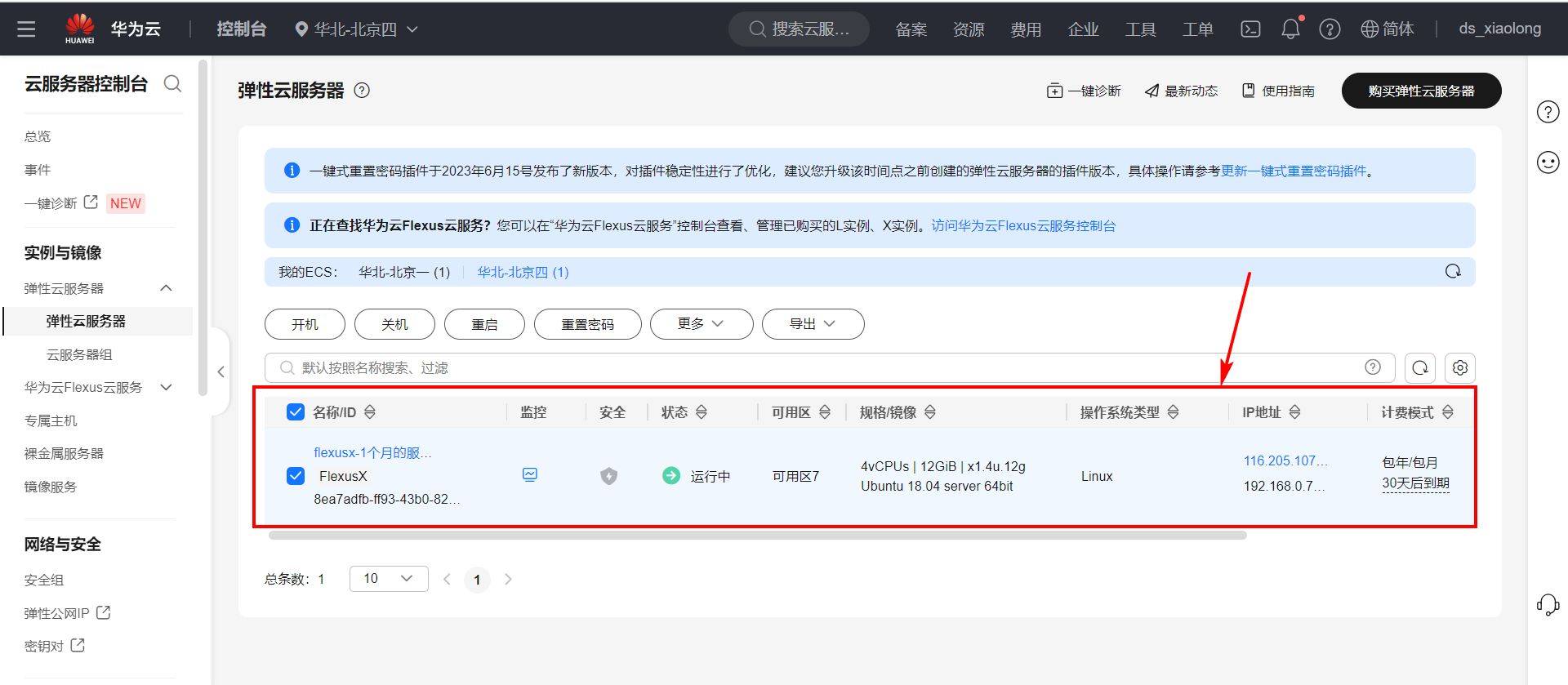

2.10 后台控制台链接：https://console.huaweicloud.com/ecm在控制台可以看到服务器的详情。

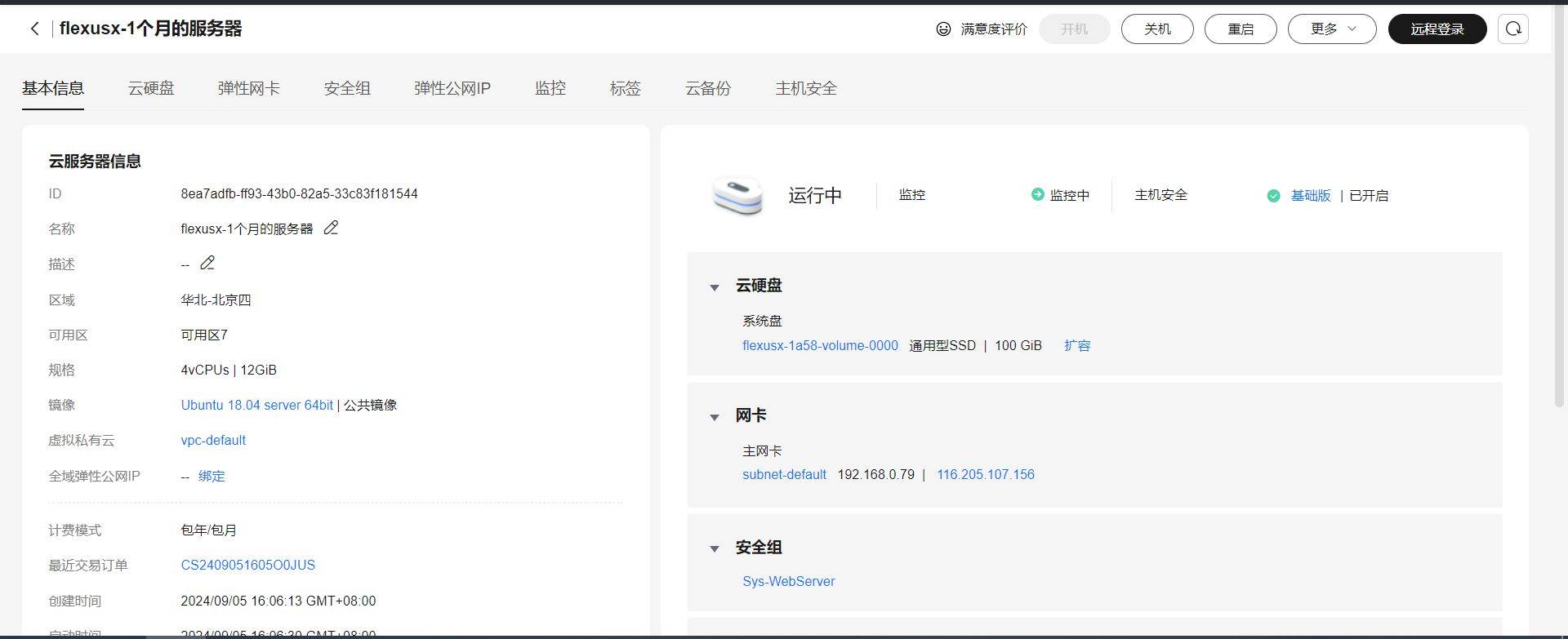

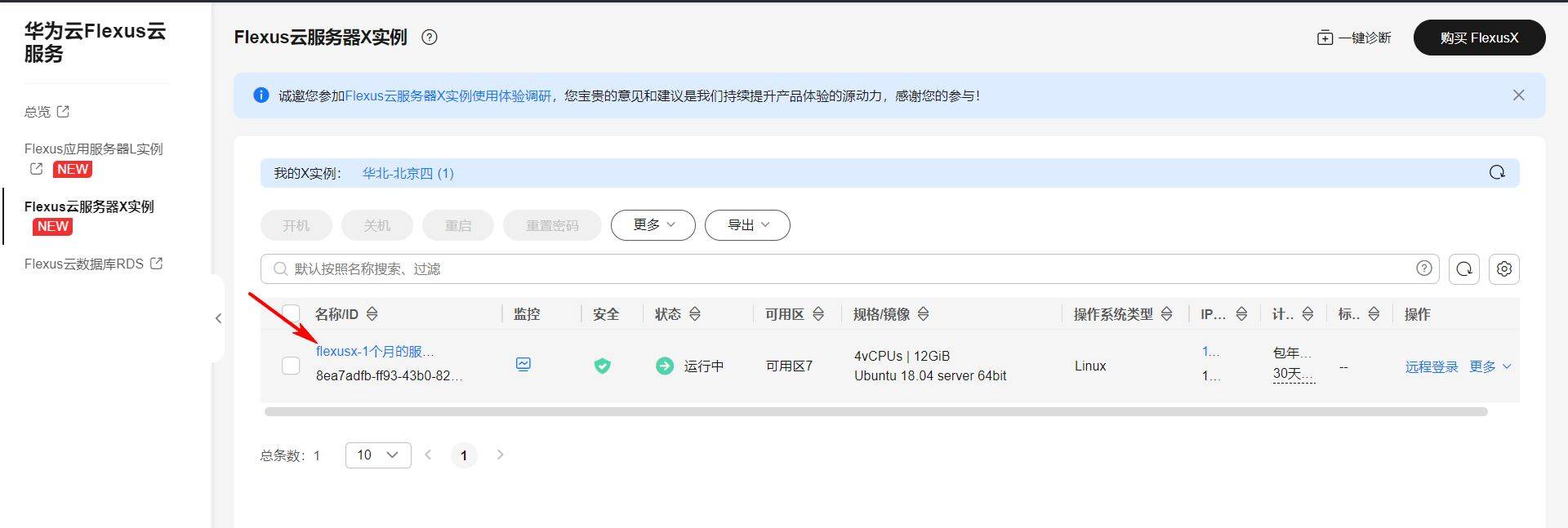

三、服务器登录3.1 查看服务器的详情点击服务器的名称，可以进去到详情页面。

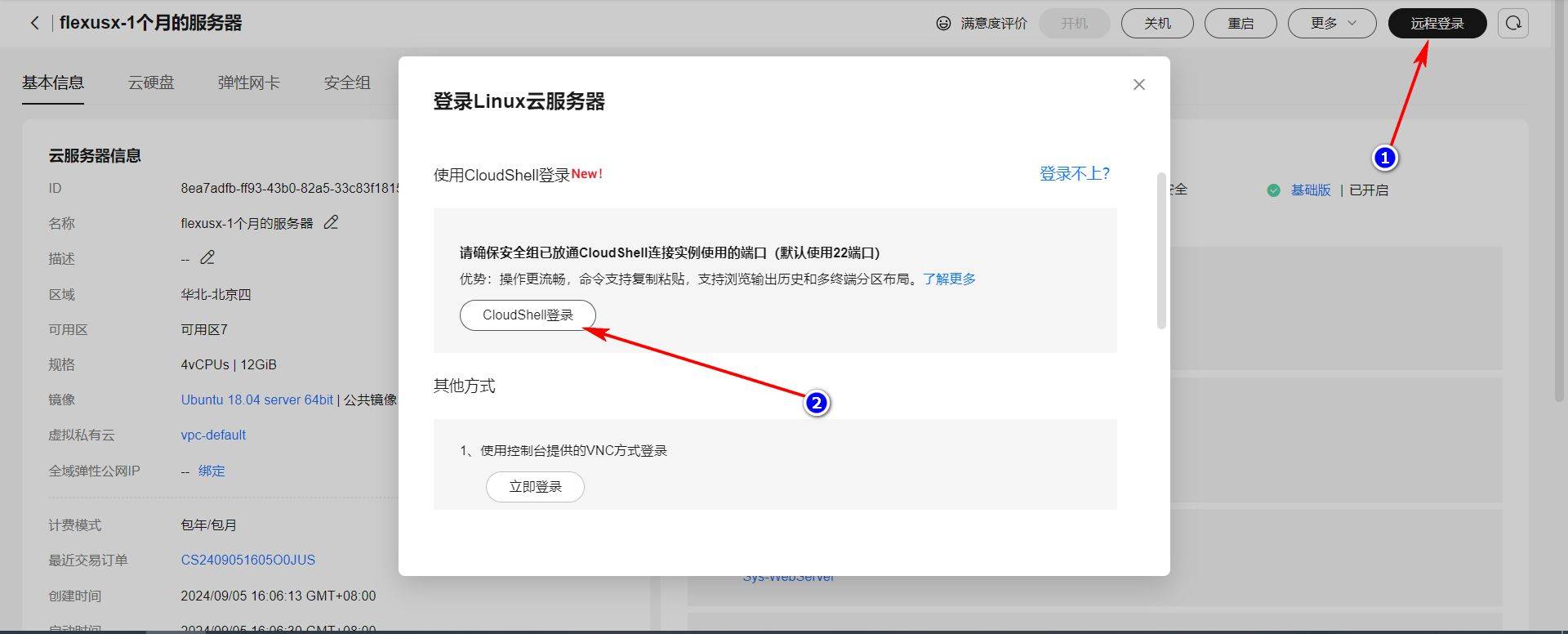

3.2 远程登录

填入设置好的密码。

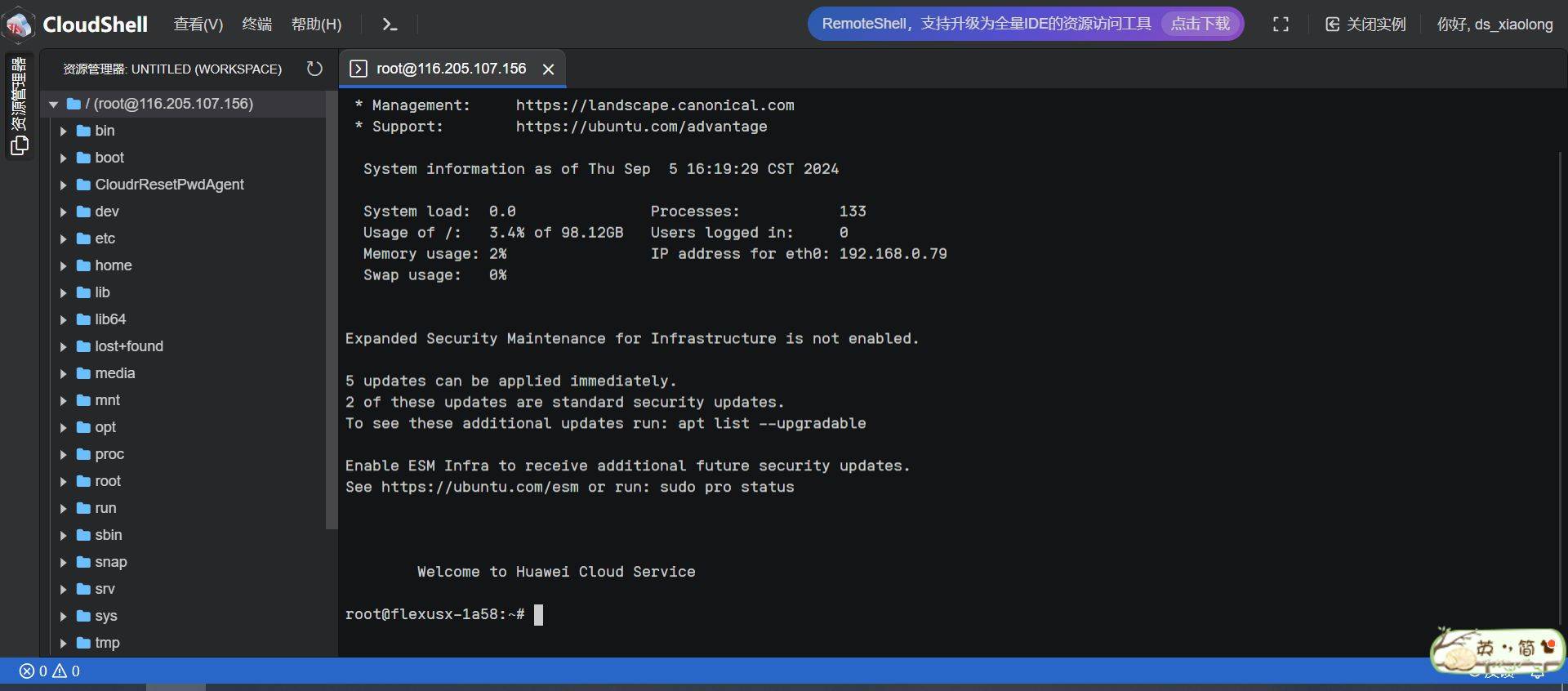

登录成功。

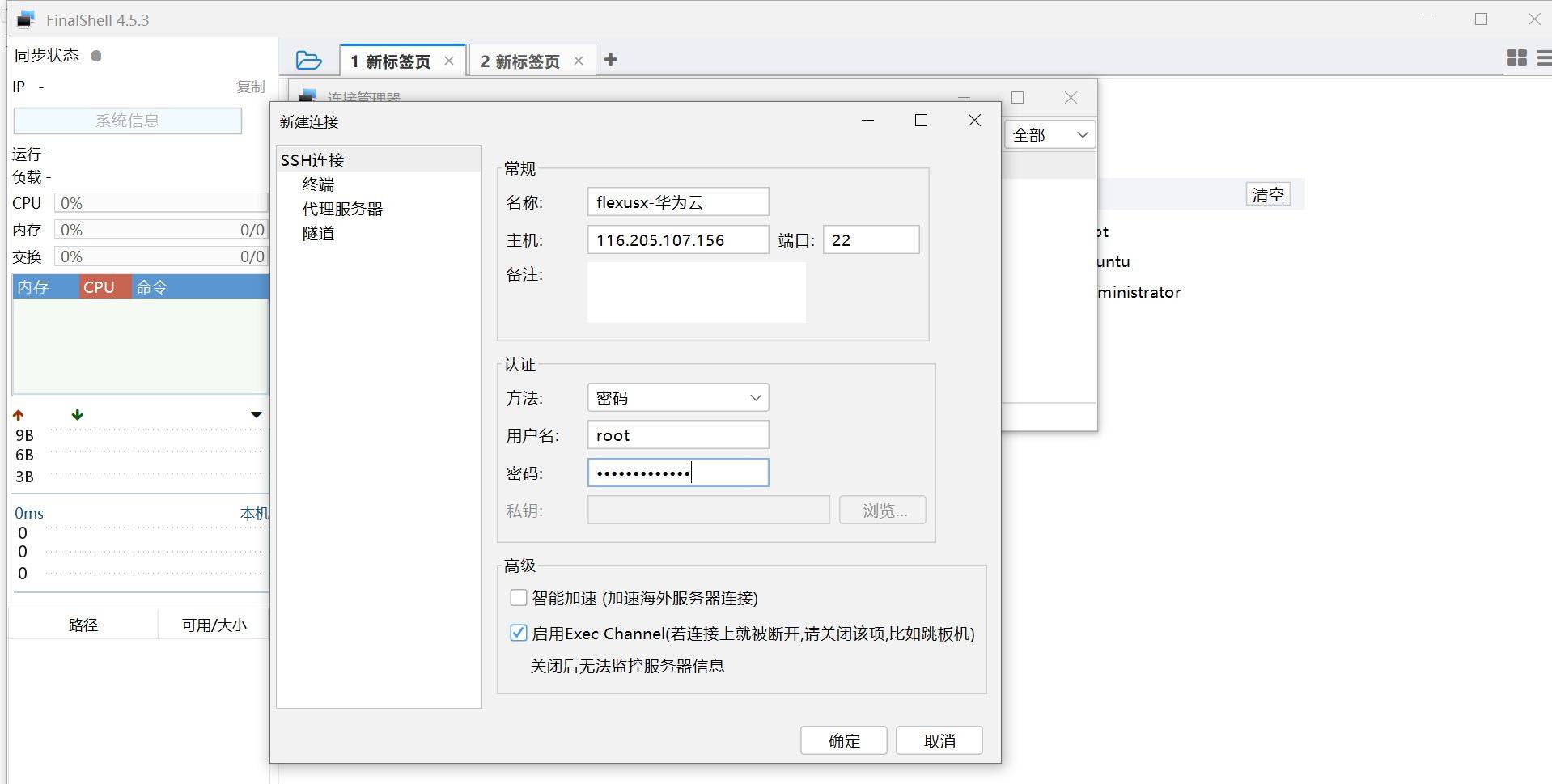

3.9 采用FinalShell登录自带的在浏览器里运行，每次需要打开浏览器，文件也不方便上传下载。所以，这里开发阶段，我采用的 FinalShell登录到服务器。新建SSH连接，输入连接信息。

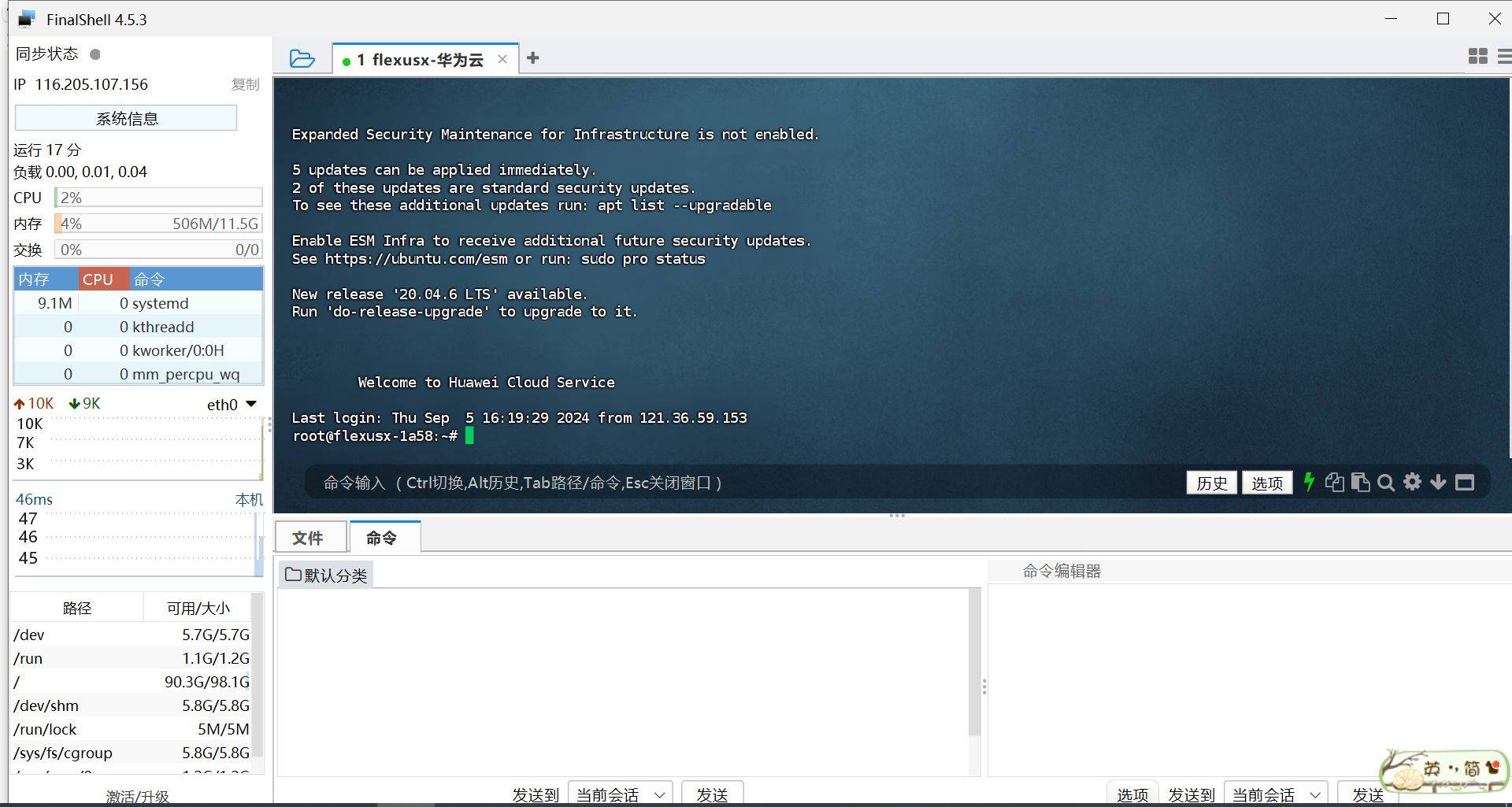

登录成功。

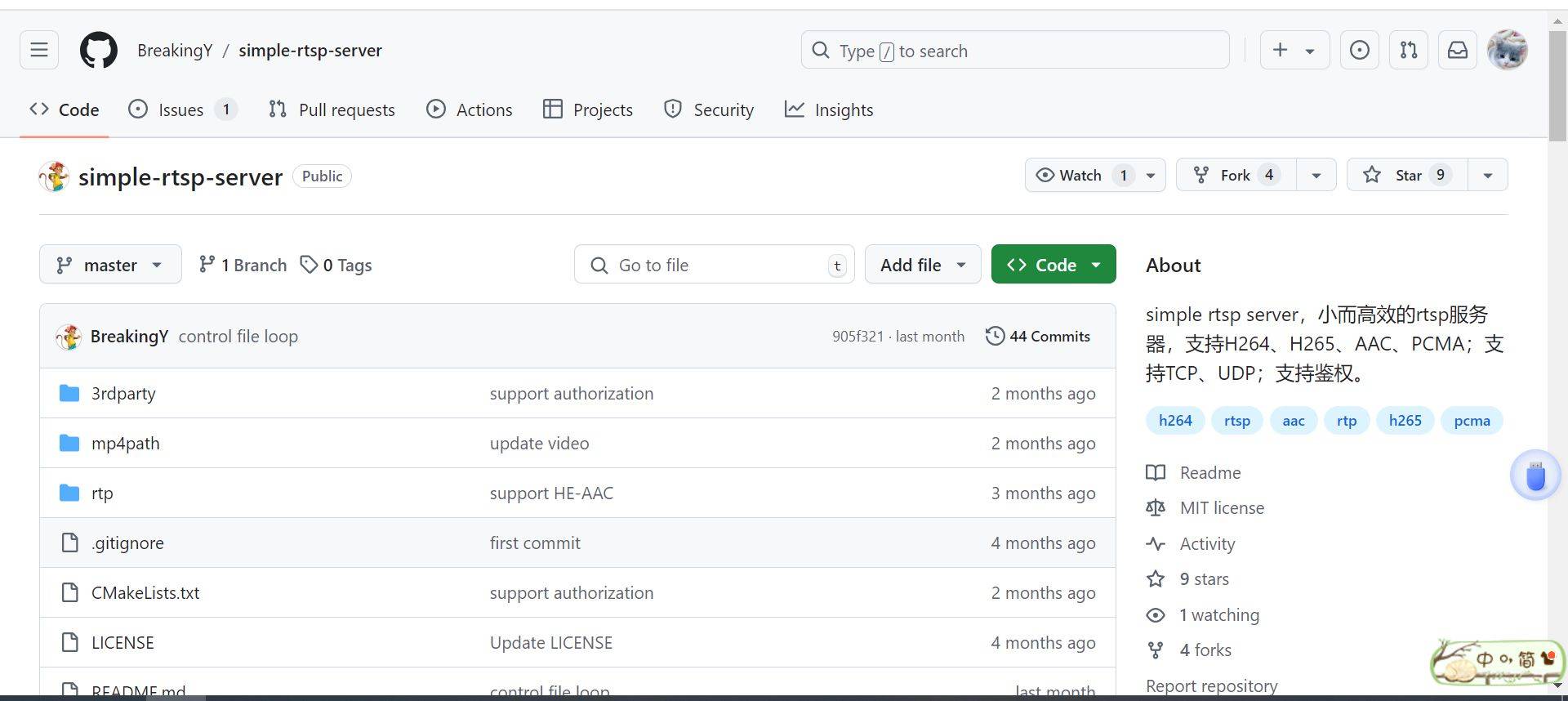

接下来就可以进行开发了四、搭建RTSP流媒体服务器4.1 simple-rtsp-server库simple-rtsp-server依赖ffmpeg，版本要求>=4.xGitHub仓库地址：https://github.com/BreakingY/simple-rtsp-server。

4.2 安装基础依赖在命令行运行sudo apt-get -y install autoconf automake build-essential libass-dev libfreetype6-dev libsdl2-dev libtheora-dev libtool libva-dev libvdpau-dev libvorbis-dev libxcb1-dev libxcb-shm0-dev libxcb-xfixes0-dev pkg-config texinfo zlib1g-dev。

安装过程中:安装完成4.3 安装依赖库在系统命令行分别运行以下命令，安装依赖库汇编库：sudo apt-get install yasmsudo apt-get install nasm视频库：sudo apt-get install libx264-dev。

sudo apt-get install libx265-dev音频库：sudo apt-get install libfdk-aac-devsudo apt-get install libmp3lame-dev

sudo apt-get install libopus-dev4.4 安装ffmpeg下载ffmpeg的库源码wget https://ffmpeg.org//releases/ffmpeg-4.0.5.tar.bz2。

tar xjvf ffmpeg-4.0.5.tar.bz2cd ffmpeg-4.0.5编译ffmpeg库源码./configure --prefix=/usr/local --enable-libx264 --disable-x86asm --enable-nonfree --enable-libfdk-aac --enable-shared --enable-gpl --enable-libmp3lame --enable-libopus --extra-cflags=-I/usr/local/include --extra-ldflags=-L/usr/local/lib。

makemake install4.5 simple-rtsp-server下载编译git clone https://github.com/BreakingY/simple-rtsp-server.git

cd simple-rtsp-servermkdir buildcd buildcmake ..make -j44.6 运行服务器cp -r ../mp4path ../rtsp_server loop 0

运行效果：4.7 开放规则要记得把服务器的 端口开放出来， 不然无法访问4.8 播放测试（RTSP协议播放云端视频文件）自带了4个测试文件 可以直接播放这是自带的4个测试文件的路径：root@flexusx-1a58:~/work/simple-rtsp-server# ls mp4path/。

test_1280x720_h264_aac.mp4 test_h264_aac.mp4 test_h264_pcma.mkv test_h265_aac.mp4下面是播放格式：rtsp://116.205.107.156:8554/test_1280x720_h264_aac.mp4

其中：rtsp://:8554/下面是potplayer播放器播放的效果:播放过程中，在服务器上会打印出每个过程的详情4.9 rtsp_server.c代码。

#include "common.h"#include "session.h"#include #include #include #include

#include #include #include #define BUF_MAX_SIZE (1024 * 1024)char *mp4Dir = "mp4path/\0"; // MP4文件存放位置

int auth = 1;#define USER "admin"#define PASSWORD "123456"/*doClientThd线程参数*/struct thd_arg_st int client_sock_fd;

char client_ip[30];int client_port;};int create_rtp_sockets(int *fd1, int *fd2, int *port1, int *port2)

struct sockaddr_in addr;int port = 0;*fd1 = socket(AF_INET, SOCK_DGRAM, 0);if (*fd1 < 0) perror("socket");

return -1;}*fd2 = socket(AF_INET, SOCK_DGRAM, 0);if (*fd2 < 0) perror("socket");close(*fd1);

return -1;}memset(&addr, 0, sizeof(addr));addr.sin_family = AF_INET;addr.sin_addr.s_addr = htonl(INADDR_ANY);

for (port = 1024; port <= 65535; port += 2) addr.sin_port = htons(port);if (bind(*fd1, (struct sockaddr *)&addr, sizeof(addr)) == 0)

addr.sin_port = htons(port + 1);if (bind(*fd2, (struct sockaddr *)&addr, sizeof(addr)) == 0)

*port1 = port;*port2 = port + 1;return 0;}close(*fd1);}}close(*fd1);close(*fd2);return -1;

}static void generate_session_id(char *session_id, size_t size) if (size < 9) return;

}time_t timestamp = time(NULL);srand((unsigned int)timestamp);int random_part = rand() % 1000000;snprintf(session_id, size, "%02ld%06d", timestamp % 100, random_part);

return;}/*处理客户端rtsp请求*/void *doClientThd(void *arg) signal(SIGINT, sig_handler);signal(SIGQUIT, sig_handler);

signal(SIGKILL, sig_handler);struct thd_arg_st *arg_thd = (struct thd_arg_st *)arg;int client_sock_fd = arg_thd->client_sock_fd;

char *client_ip = arg_thd->client_ip;int client_port = arg_thd->client_port;char method[40];char url[100];

char url_tmp[100];char filename[100];char url_setup[100];char track[1024];char url_play[1024];char local_ip[40];

char version[40];int cseq;char *buf_ptr;char *buf_tmp;char *recv_buf = malloc(BUF_MAX_SIZE);char *send_buf = malloc(BUF_MAX_SIZE);

char line[400];// rtp_over_tcpint sig_0 = -1;int sig_1 = -1;int sig_2 = -1;int sig_3 = -1;int ture_of_rtp_tcp = 0;

// rtp_over_udpint client_rtp_port = -1;int client_rtcp_port = -1;int client_rtp_port_1 = -1;int client_rtcp_port_1 = -1;

int server_rtp_port = -1;int server_rtcp_port = -1;int server_rtp_port_1 = -1;int server_rtcp_port_1 = -1;

int server_udp_socket_rtp_fd = -1;int server_udp_socket_rtcp_fd = -1;int server_udp_socket_rtp_1_fd = -1;

int server_udp_socket_rtcp_1_fd = -1;char ch = /;int findflag = 0;char path[100];memcpy(path, mp4Dir, strlen(mp4Dir));

path[strlen(mp4Dir)] = \0;char path_tmp[100];memcpy(path_tmp, mp4Dir, strlen(mp4Dir));path_tmp[strlen(mp4Dir)] = \0;

int fd;char *realm = "simple-rtsp-server";char nonce[33] = {0};generate_nonce(nonce, sizeof(nonce));char session_id[512];

generate_session_id(session_id, sizeof(session_id));while (1) int recv_len;recv_len = recv(client_sock_fd, recv_buf, BUF_MAX_SIZE, 0);

if (recv_len S--------------\n");printf("%s", recv_buf);

buf_ptr = getLineFromBuf(recv_buf, line);buf_tmp = buf_ptr;if (sscanf(line, "%s %s %s\r\n", method, url, version) != 3)

printf("parse err\n");goto out;}/*解析序列号*/while (1) buf_ptr = getLineFromBuf(buf_ptr, line);

if (!strncmp(line, "CSeq:", strlen("CSeq:"))) if (sscanf(line, "CSeq: %d\r\n", &cseq) != 1)

printf("parse err\n");goto out;}break;}}if(auth == 1) // authorization

if(!strcmp(method, "SETUP") || !strcmp(method, "DESCRIBE") || !strcmp(method, "PLAY")) AuthorizationInfo *auth_info = find_authorization(recv_buf);

if(auth_info == NULL) handleCmd_Unauthorized(send_buf, cseq, realm, nonce);printf("---------------S->C--------------\n");

printf("%s", send_buf);send(client_sock_fd, send_buf, strlen(send_buf), 0);continue;}else // printf("nonce:%s\n", auth_info->nonce);

// printf("realm:%s\n", auth_info->realm);// printf("response:%s\n", auth_info->response);// printf("uri:%s\n", auth_info->uri);

// printf("username:%s\n", auth_info->username);// 鉴权校验int ret = authorization_verify(USER, PASSWORD, realm, nonce, auth_info->uri, method, auth_info->response);

free_authorization_info(auth_info);if(ret < 0){ // 鉴权失败goto out;}}}}/* 如果是SETUP,需要解析是RTP_OVER_TCP还是RTP_OVER_UDP模式 */

if (!strcmp(method, "SETUP")) memset(url_setup, 0, sizeof(url_setup));memset(track, 0, sizeof(track));

strcpy(url_setup, url);char *p = strrchr(url_setup, ch);memcpy(track, p + 1, strlen(p)); // video-track0 audio -track1

while (1) buf_tmp = getLineFromBuf(buf_tmp, line);if (!buf_tmp) break;

}if (!strncmp(line, "Transport: RTP/AVP/TCP", strlen("Transport: RTP/AVP/TCP")))if (memcmp(track, "track0", 6) == 0)

sscanf(line, "Transport: RTP/AVP/TCP;unicast;interleaved=%d-%d\r\n", &sig_0, &sig_1);

}else sscanf(line, "Transport: RTP/AVP/TCP;unicast;interleaved=%d-%d\r\n", &sig_2, &sig_3);

}ture_of_rtp_tcp = 1;break;}if (!strncmp(line, "Transport: RTP/AVP/UDP", strlen("Transport: RTP/AVP/UDP")))

if (memcmp(track, "track0", 6) == 0) sscanf(line, "Transport: RTP/AVP/UDP;unicast;client_port=%d-%d\r\n", &client_rtp_port, &client_rtcp_port);

}else sscanf(line, "Transport: RTP/AVP/UDP;unicast;client_port=%d-%d\r\n", &client_rtp_port_1, &client_rtcp_port_1);

}break;}if (!strncmp(line, "Transport: RTP/AVP", strlen("Transport: RTP/AVP")))if (memcmp(track, "track0", 6) == 0)

sscanf(line, "Transport: RTP/AVP;unicast;client_port=%d-%d\r\n", &client_rtp_port, &client_rtcp_port);

}else sscanf(line, "Transport: RTP/AVP;unicast;client_port=%d-%d\r\n", &client_rtp_port_1, &client_rtcp_port_1);

}break;}}}if (!strcmp(method, "OPTIONS")) char *p = strrchr(url, ch);memcpy(filename, p + 1, strlen(p));

char *tmp = strcat(path_tmp, filename);findflag = 1;fd = open(tmp, O_RDONLY);if (fd < 0) // 请求的资源不存在返回404并关闭客户端文件描述符

perror("failed");handleCmd_404(send_buf, cseq);send(client_sock_fd, send_buf, strlen(send_buf), 0);

goto out;}else close(fd);if (handleCmd_OPTIONS(send_buf, cseq)) printf("failed to handle options\n");

goto out;}}}else if (!strcmp(method, "DESCRIBE")) if (findflag == 0) char *p = strrchr(url, ch);

memcpy(filename, p + 1, strlen(p));char *tmp = strcat(path_tmp, filename);fd = open(tmp, O_RDONLY);if (fd < 0) // 请求的资源不存在返回404并关闭客户端文件描述符

perror("failed");handleCmd_404(send_buf, cseq);send(client_sock_fd, send_buf, strlen(send_buf), 0);

goto out;}close(fd);findflag = 1;}char sdp[1024];char localIp[100];sscanf(url, "rtsp://%[^:]:", localIp);

int ret = generateSDP(path_tmp, localIp, sdp, sizeof(sdp));if (ret < 0){ // mp4文件有问题，或者视频不是H264/H265,音频不是AAC/PCMA

handleCmd_500(send_buf, cseq);send(client_sock_fd, send_buf, strlen(send_buf), 0);goto out;}if (handleCmd_DESCRIBE(send_buf, cseq, url, sdp))

printf("failed to handle describe\n");goto out;}}else if (!strcmp(method, "SETUP") && ture_of_rtp_tcp == 0) // RTP_OVER_UDP

sscanf(url, "rtsp://%[^:]:", local_ip);if (memcmp(track, "track0", 6) == 0) create_rtp_sockets(&server_udp_socket_rtp_fd, &server_udp_socket_rtcp_fd, &server_rtp_port, &server_rtp_port);

handleCmd_SETUP_UDP(send_buf, cseq, client_rtp_port, server_rtp_port, session_id);}else create_rtp_sockets(&server_udp_socket_rtp_1_fd, &server_udp_socket_rtcp_1_fd, &server_rtp_port_1, &server_rtp_port_1);

handleCmd_SETUP_UDP(send_buf, cseq, client_rtp_port_1, server_rtp_port_1, session_id);}}else if (!strcmp(method, "SETUP") && ture_of_rtp_tcp == 1) // RTP_OVER_TCP

sscanf(url, "rtsp://%[^:]:", local_ip);if (memcmp(track, "track0", 6) == 0) handleCmd_SETUP_TCP(send_buf, cseq, local_ip, client_ip, sig_0, session_id);

}else handleCmd_SETUP_TCP(send_buf, cseq, local_ip, client_ip, sig_2, session_id);

}}else if (!strcmp(method, "PLAY")) memset(url_play, 0, sizeof(url_play));memset(track, 0, sizeof(track));

strcpy(url_play, url);if (handleCmd_PLAY(send_buf, cseq, url_play, session_id)) printf("failed to handle play\n");

goto out;}}else goto out;}printf("---------------S->C--------------\n");printf("%s", send_buf);

send(client_sock_fd, send_buf, strlen(send_buf), 0);if (!strcmp(method, "PLAY")) struct timeval time_pre, time_now;

gettimeofday(&time_pre, NULL);char *tmp = strcat(path, filename);int ret = addClient(tmp, client_sock_fd, sig_0, sig_2, ture_of_rtp_tcp, client_ip, client_rtp_port, client_rtp_port_1,

server_udp_socket_rtp_fd, server_udp_socket_rtcp_fd, server_udp_socket_rtp_1_fd, server_udp_socket_rtcp_1_fd);

if (ret < 0)goto out;int sum = getClientNum();gettimeofday(&time_now, NULL);int time_handle = 1000 * (time_now.tv_sec - time_pre.tv_sec) + (time_now.tv_usec - time_pre.tv_usec) / 1000;

printf("timeuse:%dms sum_client:%d\n\n", time_handle, sum);goto over;}}out:close(client_sock_fd);free(recv_buf);

free(send_buf);free(arg);return NULL;over:free(recv_buf);free(send_buf);free(arg);return NULL;}int main(int argc, char *argv[])

if(argc < 3) printf("./rtsp_server auth(0-not authentication; 1-authentication) loop(0-not loop 1-loop)\n");

return -1;}auth = atoi(argv[1]);reloop_flag = atoi(argv[2]);int server_sock_fd;int ret;signal(SIGINT, sig_handler);

signal(SIGQUIT, sig_handler);signal(SIGKILL, sig_handler);signal(SIGPIPE, SIG_IGN);signal(SIGFPE, SIG_IGN);

server_sock_fd = createTcpSocket();if (server_sock_fd < 0) printf("failed to create tcp socket\n");

return -1;}ret = bindSocketAddr(server_sock_fd, SERVER_IP, SERVER_PORT);if (ret < 0) printf("failed to bind addr\n");

return -1;}ret = listen(server_sock_fd, 100);if (ret < 0) printf("failed to listen\n");return -1;

}moduleInit();printf("rtsp://%s:%d/filename\n", SERVER_IP, SERVER_PORT);while (1) int client_sock_fd;

char client_ip[40];int client_port;pthread_t tid;client_sock_fd = acceptClient(server_sock_fd, client_ip, &client_port);

if (client_sock_fd < 0) printf("failed to accept client\n");return -1;}printf("###########accept client --> client_sock_fd:%d client ip:%s,client port:%d###########\n", client_sock_fd, client_ip, client_port);

struct thd_arg_st *arg;arg = malloc(sizeof(struct thd_arg_st));memcpy(arg->client_ip, client_ip, strlen(client_ip));

arg->client_port = client_port;arg->client_sock_fd = client_sock_fd;ret = pthread_create(&tid, NULL, doClientThd, (void *)arg);

if (ret < 0) perror("doClientThd pthread_create()");}pthread_detach(tid);}moduleDel();

close(server_sock_fd);return 0;}4.10 common.c 代码#include "common.h"#include "md5.h"#include

#include #include #include #include #include

#include #include #include #include #include

#include #include #include #include #include

int createTcpSocket() int sockfd;int on = 1;sockfd = socket(AF_INET, SOCK_STREAM, 0);if (sockfd < 0)

return -1;setsockopt(sockfd, SOL_SOCKET, SO_REUSEADDR, (const char *)&on, sizeof(on));return sockfd;}

int createUdpSocket() int sockfd;int on = 1;sockfd = socket(AF_INET, SOCK_DGRAM, 0);if (sockfd < 0)

return -1;setsockopt(sockfd, SOL_SOCKET, SO_REUSEADDR, (const char *)&on, sizeof(on));return sockfd;}

int bindSocketAddr(int sockfd, const char *ip, int port) struct sockaddr_in addr;addr.sin_family = AF_INET;

addr.sin_port = htons(port);addr.sin_addr.s_addr = inet_addr(ip);if (bind(sockfd, (struct sockaddr *)&addr, sizeof(struct sockaddr)) < 0)

return -1;return 0;}int acceptClient(int sockfd, char *ip, int *port) int clientfd;socklen_t len = 0;

struct sockaddr_in addr;memset(&addr, 0, sizeof(addr));len = sizeof(addr);clientfd = accept(sockfd, (struct sockaddr *)&addr, &len);

if (clientfd < 0) printf("accept err:%s\n", strerror(errno));return -1;}strcpy(ip, inet_ntoa(addr.sin_addr));

*port = ntohs(addr.sin_port);return clientfd;}void rtpHeaderInit(struct RtpPacket *rtpPacket, uint8_t csrcLen, uint8_t extension,

uint8_t padding, uint8_t version, uint8_t payloadType, uint8_t marker,uint16_t seq, uint32_t timestamp, uint32_t ssrc)

rtpPacket->rtpHeader.csrcLen = csrcLen;rtpPacket->rtpHeader.extension = extension;rtpPacket->rtpHeader.padding = padding;

rtpPacket->rtpHeader.version = version;rtpPacket->rtpHeader.payloadType = payloadType;rtpPacket->rtpHeader.marker = marker;

rtpPacket->rtpHeader.seq = seq;rtpPacket->rtpHeader.timestamp = timestamp;rtpPacket->rtpHeader.ssrc = ssrc;

return;}char *getLineFromBuf(char *buf, char *line) while (*buf != \n) *line = *buf;

line++;buf++;}*line = \n;++line;*line = \0;++buf;return buf;}static char *extract_value(const char *source, const char *key) const char *start = strstr(source, key);

if (!start) return NULL;}start += strlen(key) + 2; // 跳过 key="const char *end = strchr(start, ");

if (!end) return NULL;}size_t len = end - start;char *value = (char *)malloc(len + 1);if (!value) return NULL;

}strncpy(value, start, len);value[len] = \0;return value;}AuthorizationInfo *find_authorization(const char *request) const char *auth_start = strstr(request, "Authorization: ");

if (!auth_start) return NULL; // Authorization字段未找到}auth_start += strlen("Authorization: ");

const char *auth_end = strchr(auth_start, \r);if (!auth_end) auth_end = strchr(auth_start, \n);

}if (!auth_end) return NULL; // 无法找到行尾}char *auth_value = (char *)malloc(auth_end - auth_start + 1);

if (!auth_value) return NULL; // 内存分配失败}strncpy(auth_value, auth_start, auth_end - auth_start);

auth_value[auth_end - auth_start] = \0;AuthorizationInfo *auth_info = (AuthorizationInfo *)malloc(sizeof(AuthorizationInfo));

if (!auth_info) free(auth_value);return NULL; // 内存分配失败}auth_info->username = extract_value(auth_value, "username");

auth_info->realm = extract_value(auth_value, "realm");auth_info->nonce = extract_value(auth_value, "nonce");

auth_info->uri = extract_value(auth_value, "uri");auth_info->response = extract_value(auth_value, "response");

free(auth_value);return auth_info;}void free_authorization_info(AuthorizationInfo *auth_info) if (auth_info) free(auth_info->username);

free(auth_info->realm);free(auth_info->nonce);free(auth_info->uri);free(auth_info->response);free(auth_info);

}return;}// 生成随机字符串static void generate_random_string(char *buf, int length) static const char charset[] = "abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789";

for (size_t i = 0; i < length; i++) buf[i] = charset[rand() % (sizeof(charset) - 1)];}return;

}// 生成noncevoid generate_nonce(char *nonce, int length) if (length < 1) nonce[0] = \0;

return;}memset(nonce, 0, length);srand((unsigned int)time(NULL));char random_string[128] = {0};generate_random_string(random_string, sizeof(random_string));

char timestamp[32];snprintf(timestamp, sizeof(timestamp), "%ld", (long)time(NULL));char combined[256] = {0};

snprintf(combined, sizeof(combined), "%s%s", random_string, timestamp);MD5_CTX md5;unsigned char decrypt[16];

MD5Init(&md5);MD5Update(&md5, combined, strlen(combined));MD5Final(&md5, decrypt);for(int i = 0; i < 16; i++) snprintf(&(nonce[i * 2]), 3, "%02x", decrypt[i]);

}return;}int authorization_verify(char *username, char *password, char *realm, char *nonce, char *uri, char * method, char *response) // md5(username:realm:password)

unsigned char res1[16];char res1_hex[33] = {0};char buffer1[256] = {0};sprintf(buffer1,"%s:%s:%s", username, realm, password);

MD5_CTX md5_1;MD5Init(&md5_1);MD5Update(&md5_1, buffer1, strlen(buffer1));MD5Final(&md5_1, res1);for(int i = 0; i < 16; i++) snprintf(&(res1_hex[i * 2]), 3, "%02x", res1[i]);

}// md5(public_method:url)unsigned char res2[16];char res2_hex[33] = {0};char buffer2[256] = {0};sprintf(buffer2,"%s:%s", method, uri);

MD5_CTX md5_2;MD5Init(&md5_2);MD5Update(&md5_2, buffer2, strlen(buffer2));MD5Final(&md5_2, res2);for(int i = 0; i < 16; i++) snprintf(&(res2_hex[i * 2]), 3, "%02x", res2[i]);

}// md5( md5(username:realm:password):nonce:md5(public_method:url) )unsigned char res[16];char res_hex[33] = {0};

char buffer[512] = {0};sprintf(buffer,"%s:%s:%s", res1_hex, nonce, res2_hex);MD5_CTX md5;MD5Init(&md5);

MD5Update(&md5, buffer, strlen(buffer));MD5Final(&md5, res);for(int i = 0; i < 16; i++) snprintf(&(res_hex[i * 2]), 3, "%02x", res[i]);

}// printf("res:%s response:%s\n", res_hex, response);if(strcmp(res_hex, response) == 0) return 0;

}return -1;}int handleCmd_Unauthorized(char *result, int cseq, char *realm, char *nonce) sprintf(result, "RTSP/1.0 401 Unauthorized\r\n"

"CSeq: %d\r\n""WWW-Authenticate: Digest realm=\"%s\", nonce=\"%s\"\r\n""\r\n",cseq,realm,nonce);return 0;

}int handleCmd_OPTIONS(char *result, int cseq) sprintf(result, "RTSP/1.0 200 OK\r\n""CSeq: %d\r\n"

"Public: OPTIONS, DESCRIBE, SETUP, PLAY\r\n""\r\n",cseq);return 0;}int handleCmd_DESCRIBE(char *result, int cseq, char *url, char *sdp)

sprintf(result, "RTSP/1.0 200 OK\r\nCSeq: %d\r\n""Content-Base: %s\r\n""Content-type: application/sdp\r\n"

"Content-length: %d\r\n\r\n""%s",cseq,url,strlen(sdp),sdp);return 0;}int handleCmd_SETUP_TCP(char *result, int cseq, char *localIp, char *clientIp, int sig_0, char *session)

sprintf(result, "RTSP/1.0 200 OK\r\n""CSeq: %d\r\n""Transport: RTP/AVP/TCP;unicast;destination=%s;source=%s;interleaved=%d-%d\r\n"

"Session: %s\r\n""\r\n",cseq,clientIp,localIp,sig_0,sig_0 + 1,session);return 0;}int handleCmd_SETUP_UDP(char *result, int cseq, int clientRtpPort, int serverRtpPort, char *session)

sprintf(result, "RTSP/1.0 200 OK\r\n""CSeq: %d\r\n""Transport: RTP/AVP;unicast;client_port=%d-%d;server_port=%d-%d\r\n"

"Session: %s\r\n""\r\n",cseq,clientRtpPort,clientRtpPort + 1,serverRtpPort,serverRtpPort + 1,session);

return 0;}int handleCmd_PLAY(char *result, int cseq, char *url_setup, char *session) sprintf(result, "RTSP/1.0 200 OK\r\n"

"CSeq: %d\r\n""Range: npt=0.000-\r\n""Session: %s; timeout=60\r\n\r\n",cseq,session);return 0;}int handleCmd_404(char *result, int cseq)

sprintf(result, "RTSP/1.0 404 NOT FOUND\r\n""CSeq: %d\r\n""\r\n",cseq);return 0;}int handleCmd_500(char *result, int cseq)

sprintf(result, "RTSP/1.0 500 SERVER ERROR\r\n""CSeq: %d\r\n""\r\n",cseq);return 0;}int check_media_info(const char *filename, MediaInfo *info)

AVFormatContext *format_ctx = NULL;int ret;if ((ret = avformat_open_input(&format_ctx, filename, NULL, NULL)) < 0)

fprintf(stderr, "Could not open source file %s\n", filename);return ret;}if ((ret = avformat_find_stream_info(format_ctx, NULL)) < 0)

fprintf(stderr, "Could not find stream information\n");avformat_close_input(&format_ctx);

return ret;}info->has_audio = 0;info->has_video = 0;info->is_video_h26x = 0;info->is_audio_aac_pcma = 0;

info->audio_sample_rate = 0;info->audio_channels = 0;// info->vps = NULL;// info->sps = NULL;// info->pps = NULL;

// info->vps_size = 0;// info->sps_size = 0;// info->pps_size = 0;for (unsigned int i = 0; i nb_streams; i++)

AVStream *stream = format_ctx->streams[i];AVCodecParameters *codecpar = stream->codecpar;

if (codecpar->codec_type == AVMEDIA_TYPE_VIDEO) info->has_video = 1;if (codecpar->codec_id == AV_CODEC_ID_H264 || codecpar->codec_id == AV_CODEC_ID_H265 || codecpar->codec_id == AV_CODEC_ID_HEVC)

info->is_video_h26x = 1;if (codecpar->codec_id == AV_CODEC_ID_H264)info->video_type = H264;

elseinfo->video_type = H265;}}else if (codecpar->codec_type == AVMEDIA_TYPE_AUDIO) info->has_audio = 1;

if (codecpar->codec_id == AV_CODEC_ID_AAC || codecpar->codec_id == AV_CODEC_ID_PCM_ALAW) info->is_audio_aac_pcma = 1;

info->audio_sample_rate = codecpar->sample_rate;info->audio_channels = codecpar->channels;info->profile = codecpar->profile;

if(codecpar->codec_id == AV_CODEC_ID_AAC)info->audio_type = AAC;elseinfo->audio_type = PCMA;}}}avformat_close_input(&format_ctx);

return 0;}void free_media_info(MediaInfo *info) // if (info->vps)// // free(info->vps);

// }// if (info->sps)// // free(info->sps);// }// if (info->pps)// // free(info->pps);

// }return;}/*#define FF_PROFILE_AAC_MAIN 0#define FF_PROFILE_AAC_LOW 1#define FF_PROFILE_AAC_SSR 2

#define FF_PROFILE_AAC_LTP 3#define FF_PROFILE_AAC_HE 4#define FF_PROFILE_AAC_HE_V2 28#define FF_PROFILE_AAC_LD 22

#define FF_PROFILE_AAC_ELD 38#define FF_PROFILE_MPEG2_AAC_LOW 128#define FF_PROFILE_MPEG2_AAC_HE 131

*/static int get_audio_obj_type(int aactype) //AAC HE V2 = AAC LC + SBR + PS//AAV HE = AAC LC + SBR

//所以无论是 AAC_HEv2 还是 AAC_HE 都是 AAC_LCswitch(aactype) case 0:case 2:case 3:return aactype + 1;

case 1:case 4:case 28:return 2;default:return 2;}return 2;}static int get_sample_rate_index(int freq, int aactype)

int i = 0;int freq_arr[13] = 96000, 88200, 64000, 48000, 44100, 32000,24000, 22050, 16000, 12000, 11025, 8000, 7350

};//如果是 AAC HEv2 或 AAC HE, 则频率减半if(aactype == 28 || aactype == 4) freq /= 2;}for(i = 0; i < 13; i++) if(freq == freq_arr[i]) return i;

}}return 4;//默认是44100}static int get_channel_config(int channels, int aactype) //如果是 AAC HEv2 通道数减半

if(aactype == 28) return (channels / 2);}return channels;}int generateSDP(char *file, char *localIp, char *buffer, int buffer_len)

memset(buffer, 0, buffer_len);MediaInfo info;if (check_media_info(file, &info) != 0) printf("server error\n");

free_media_info(&info);return -1;}if (info.has_video && !info.is_video_h26x) printf("only support h264 h265\n");

free_media_info(&info);return -1;}if (info.has_audio && !info.is_audio_aac_pcma) printf("only support aac pcma\n");

free_media_info(&info);return -1;}sprintf(buffer, "v=0\r\n""o=- 9%ld 1 IN IP4 %s\r\n""c=IN IP4 %s\r\n"

"t=0 0\r\n""a=control:*\r\n",time(NULL), localIp, localIp);if (info.has_video) sprintf(buffer + strlen(buffer), "m=video 0 RTP/AVP %d\r\n"

"a=rtpmap:%d %s/90000\r\n"//"a=fmtp:%d profile-level-id=42A01E; packetization-mode=1; sprop-parameter-sets=Z0IACpZTBYmI,aMljiA==\r\n"

"a=fmtp:%d packetization-mode=1\r\n""a=control:track0\r\n",RTP_PAYLOAD_TYPE_H26X, RTP_PAYLOAD_TYPE_H26X, info.video_type == H264 ? "H264" : "H265", RTP_PAYLOAD_TYPE_H26X);

}if (info.has_audio) if (info.audio_type == AAC) char config[10] = {0};int index = get_sample_rate_index(info.audio_sample_rate, info.profile);

sprintf(config, "%02x%02x", (uint8_t)((get_audio_obj_type(info.profile)) <> 1), (uint8_t)((index << 7)|(info.audio_channels << 3)));

sprintf(buffer + strlen(buffer), "m=audio 0 RTP/AVP %d\r\n""a=rtpmap:%d MPEG4-GENERIC/%u/%u\r\n""a=fmtp:%d streamtype=5;profile-level-id=1;mode=AAC-hbr;config=%04u;sizelength=13;indexlength=3;indexdeltalength=3\r\n"

"a=control:track1\r\n",RTP_PAYLOAD_TYPE_AAC, RTP_PAYLOAD_TYPE_AAC, info.audio_sample_rate, info.audio_channels, RTP_PAYLOAD_TYPE_AAC, atoi(config));

}else sprintf(buffer + strlen(buffer), "m=audio 0 RTP/AVP %d\r\n""a=rtpmap:%d PCMA/%u/%u\r\n"

"a=control:track1\r\n",RTP_PAYLOAD_TYPE_PCMA, RTP_PAYLOAD_TYPE_PCMA, info.audio_sample_rate, info.audio_channels);

}}free_media_info(&info);return 0;}// aactype = ffmpeg --> AVCodecParameters *codecpar->profilevoid adts_header(char *adts_header_buffer, int data_len, int aactype, int frequency, int channels)

int audio_object_type = get_audio_obj_type(aactype);int sampling_frequency_index = get_sample_rate_index(frequency, aactype);

int channel_config = get_channel_config(channels, aactype);int adts_len = data_len + 7;adts_header_buffer[0] = 0xff; //syncword:0xfff 高8bits

adts_header_buffer[1] = 0xf0; //syncword:0xfff 低4bitsadts_header_buffer[1] |= (0 << 3); //MPEG Version:0 for MPEG-4,1 for MPEG-2 1bit

adts_header_buffer[1] |= (0 << 1); //Layer:0 2bitsadts_header_buffer[1] |= 1; //protection absent:1 1bit

adts_header_buffer[2] = (audio_object_type - 1)<<6; //profile:audio_object_type - 1 2bits

adts_header_buffer[2] |= (sampling_frequency_index & 0x0f)<<2; //sampling frequency index:sampling_frequency_index 4bits

adts_header_buffer[2] |= (0 << 1); //private bit:0 1bit

adts_header_buffer[2] |= (channel_config & 0x04)>>2; //channel configuration:channel_config 高1bit

adts_header_buffer[3] = (channel_config & 0x03)<<6; //channel configuration:channel_config 低2bits

adts_header_buffer[3] |= (0 << 5); //original：0 1bit

adts_header_buffer[3] |= (0 << 4); //home：0 1bit

adts_header_buffer[3] |= (0 << 3); //copyright id bit：0 1bit

adts_header_buffer[3] |= (0 << 2); //copyright id start：0 1bit

adts_header_buffer[3] |= ((adts_len & 0x1800) >> 11); //frame length：value 高2bitsadts_header_buffer[4] = (uint8_t)((adts_len & 0x7f8) >> 3); //frame length:value 中间8bits

adts_header_buffer[5] = (uint8_t)((adts_len & 0x7) << 5); //frame length:value 低3bitsadts_header_buffer[5] |= 0x1f; //buffer fullness:0x7ff 高5bits

adts_header_buffer[6] = 0xfc;return;}五、总结华为云正在举行其年度828 B2B企业节活动，期间提供了包括Flexus X实例在内的多种产品的优惠对于那些对计算性能有较高要求，并且需要自行部署MySQL、Redis、Nginx等服务的用户来说，这次促销是一个很好的机会，建议有兴趣的朋友可以前往查看相关的优惠信息。

官网直达：https://activity.huaweicloud.com/828_promotion/index.html返回搜狐，查看更多
